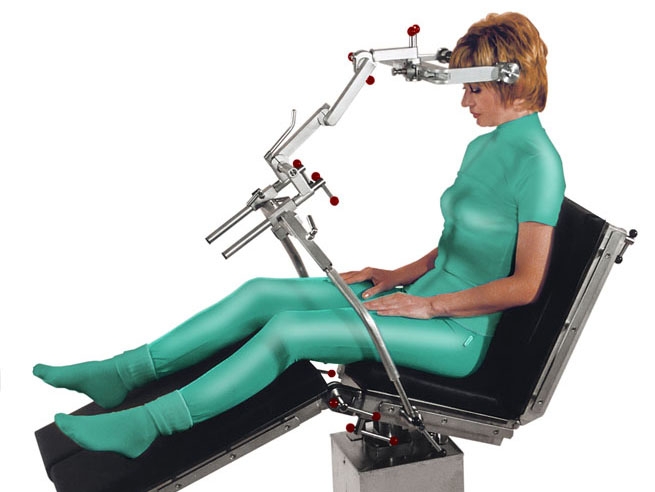

• Set of additional accessories KPP-09 for neurosurgery allows solid and exact head stabilizing in neurosurgical operations on front, occipital, temporal or parietal zone, patient in sitting or lying position;
• Head positioning is secured by stable fixturing or by use of profiled U-shaped head cushioning;
• Cranial clamp assembly includes set of nails. Nails equipped with insulating tube are also available in case of electric tools use;
• Use of ball type connecting element with smooth stepless adjustment secures easy positioning of patient head respective to vertebral column;
• Polyurethane made, antistatic, seamless ring shaped head cushioning and rests;
• All metallic elements are stainless steel made, joints are oxygen inert lubricated thus securing zero flammability;
• Set additionally equipped with ring shaped rests, cranial clamp includes head support with 140 mm or 90 mm ring shaped cushioning.

Set KPP-09 for neurosurgery is used on operating tables Мedin Alfa (ОU-01К), ОК-Beta (ОUК-02), ОМ-Delta, ОМ-Delta-Plus, ОК-Beta Plus (ОUК-02-1), ОМ-Sigma.

Delivery set:

• Table mounting adapter - 1 pc.
• Hinge-type holder - 1 pc.
• Dorsal section - 1 pc.
• Connecting element - 1 pc.
• Ball type connecting element - 1 pc.
• Cranial clamp - 1 pc.
• Set of nails to cranial clamp (metallic and equipped with insulating tube, standart and small sized) - 4 sets? 3 pcs.in each
• 90 mm rest, dowel based - 1 pc.
• 90 mm rest, mortice based - 1 pc.
• Adjusting head rest assembly (right and left) - pair
• Set of cushioning (pillows) - pair
• 140 mm ring shaped head cushioning assembly - 1 pc.
• 90 mm ring shaped cushioning with head support base - 1 pc.
• Diametrical attachment - 1 pc.
• Radial tooth-typee clamp - 2 pcs.

Application

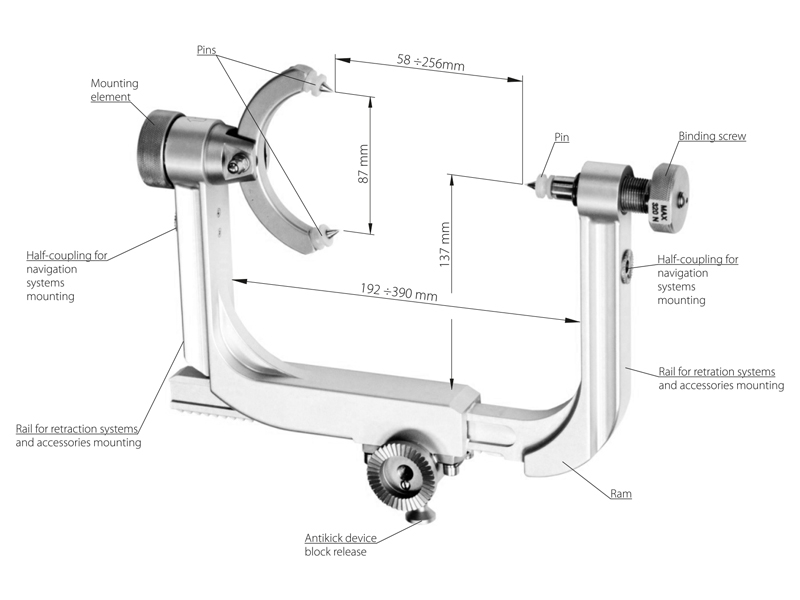

Cranial clamp equipped with 90 mm and 140 mm ring shaped cushioning with head support base.
