Mammography

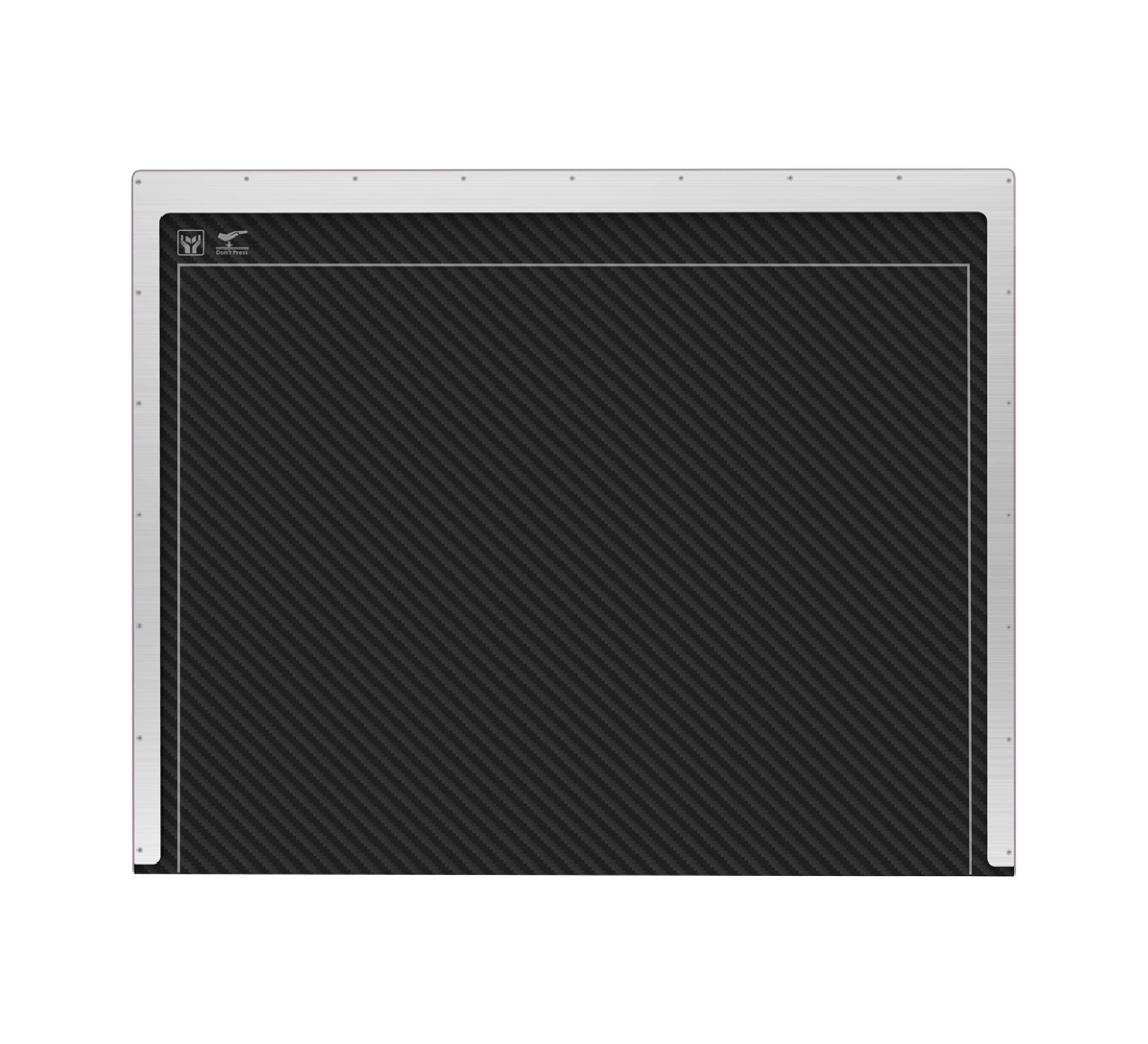

RSM 2430TD
- 76㎛ Small Pixel Size for High-Resolution Images
- 24 x 30 System Detector for Mammography
- TRUVIEW®ART Patented Image Processing
- Small CWD and LWD for Max. Imaging Area
- Fast Image Acquisition and Image Transfer
- Lightweight Detector
High-Resolution Mammo. Detector for System Integration
High MTF & DQE with 76㎛ small pixel size and mammography optimized FOCUS CsI technology
- FOCUS Scintillator Technology
- FOCUS (Fluorescent Optical CsI Upgraded Structure) has more focused optical signal compared to conventional CsI. As a result, ultra low-noise is achieved by FOCUS Scintillator technology.
- High Frame Rate 3D Tomo System Integration Detector
- RSM 2430TD is a high-performance system integration detector
for DBT and 2D breast imaging. With ~7fps high frame rate,
fast image acquisition is possible.
High Definition Images: FOCUS CsI + TRUVIEW®ART
Image sharpness in a conventional CsI image is reduced due to light scattering. However, with DRTECH's patented reverse filtering technology TRUVIEW®ART, combined with FOCUS CsI technology, the sharpness of RSM 2430TD's image is increased resulting in high-quality sharp images for detection of breast abnormalities such as micro-calcifications and micro-lesions.
- Superior DQE @ Low Dose For Superior Image Quality
- RSM 2430TD's high X-ray efficiency (DQE) ensures that high-quality images are acquired regardless of dose conditions. With high low dose DQE, RSM 2430TD can help reduce the patient dose as well as extend system life-time as less dose is exposed for each image acquisition.
- Optimized HW Design for Easy and Fast Integration
- With 2.1kg lightweight and system integration optimized HW design, RSM2430TD can be easily and quickly be integrated with any mammography system bucky.
Also with the smallest CWD (chest wall distance) and LWD (lateral wall distance), the maximum imaging area is provided.
Proven High-Quality Images for Early Detection
- Crystal clear mammography images for increased diagnostic confidence
- Crystal clear mammography images for increased diagnostic confidence
Specifications
| Model |
RSM 2430TD |
| Scintillator |
Direct deposition Csl |
| Pixel size |
76㎛ |
| Resolution |
3,840 x 3,072 |
| Dimensions |
329 x 260 x 40.2 |
| Chest Wall Distance |
≤2.0mm |
| ADC |
16 bits |
| Weight |
2.1kg |
- Product design and specification may change without prior notice.
- This product is a medical device. It should be used only by qualified medical professionals following all safety and operation guidelines.
