General Radiography
EVS 3643A
- Increased Dose Efficiency and Image Quality
- Improved Patient Throughput and Fast Workflow
- High DQE / MTF Value
- TRUVIEW®ART, Advanced Reverse Filtering Technology
- User Friendly & Ergonomic Design
Technological Upgrades in EVS Advanced Series
EVS Advanced series provides excellent imaging experience
in dose reduction and diagnostic clarity
- Focus Scintillator Technology
- FOCUS (Fluorescent Optical Csi Upgraded Structure) has more focused optical signal compared to conventional Csi. As a result, ultra low noise is achieved by FOCUS technology.
- 2X higher DQE at Low-dose
- EXPRIMER Advanced Series provides high image quality at 50% less dose than CR and at 25% or more reduced dose compared to DR.
- Experience Reduction in Patient Dose
- Reduced patient dose is achieved through EXPRIMER Advanced Series' powerful low-dose performance.
TRUVIEW®ART
TRUVIEW®ART provides 30% or more increased image contrast and improved detect ability for micro-abnormalities in lungs, chest and heart
2X Visibility for Exceptional Diagnostic Clarity

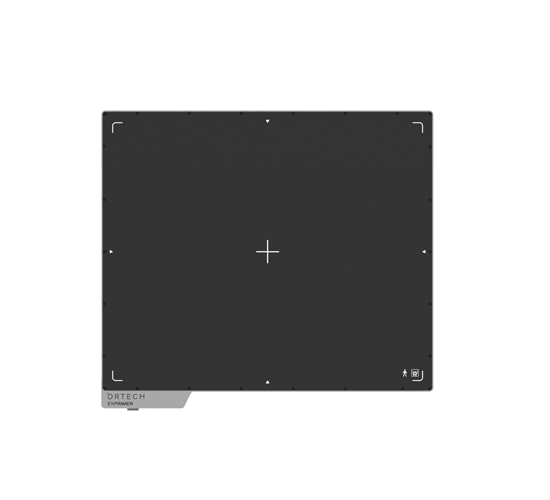

Wired EVS Advanced Series : EVS 3643A
Superior Low Dose Imaging with Advanced Features
- Fast & Efficient Workflow
- EXPRIMER Advanced Series allows fast and efficient workflow brought by its fast exam time, speeding workflow and decreasing repeats.
- Rugged Design with Portability
- EXPRIMER Advanced series’ LAN cable with fixed protector increases the reliability and durability. Moreover, attachable handle allows carrying detector more conveniently.
- Single LAN cable
- With a single Lan cable, installation and maintenance of detectors become more simplified. The elimination of interface box allows the easier and faster installation.
Specifications
| Model |
EVS 3643A (Wired) |
| Scintillator |
FOCUS Csl:TI / GOS |
| Pixel size |
140㎛ |
| Pixel matrix |
2,560 x 3,072 |
| Dimensions |
386(H) x 460(V) x 15.5(D) mm |
| Weight |
3.5kg |
- Product design and specification may change without prior notice.
- This product is a medical device. It should be used only by qualified medical professionals following all safety and operation guidelines.
